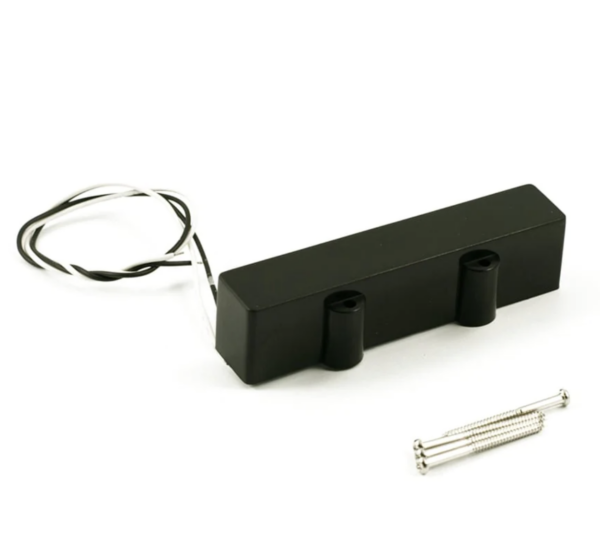

The Armstrong JBE-1 Jazz pickups offer a distinct single coil tonality coupled with unique features that enhance their performance.
One notable advantage is their hum-canceling capability when both pickups are used simultaneously at equal volumes, achieved by winding and magnetizing them in opposing directions—a feature often overlooked by players.
Moreover, this version of the pickups utilizes ceramic magnets, imparting a brighter and more focused top-end tone compared to the alnico variant of the same pickup model. This characteristic makes them particularly suitable for those seeking enhanced clarity and articulation in their sound.
| Series | Handwound |
| Pickup Configuration | S-S |
| Guitar Style | Jazz Bass |
| String Number | 4 |
| Output | Standard |
| Active? | No |
| Potted? | No |
| DC Resistance | 8 |
| DC Resistance | 8 |
| Alloy Type | Ceramic |
| Wire Type | AWG 42 |
| Signal Leads | Braided Shield |
| Insulation Type | Plain Enamel |
| Plastic Material | ABS |
| Based on an era? | '50s |
| Colour | Black |
| Weight (in kg) | 0. |
| Made In | UK |
| Manufacturer Part Number | JBE-1R, JBE-1F, JBEF-1, JBER-1 |
