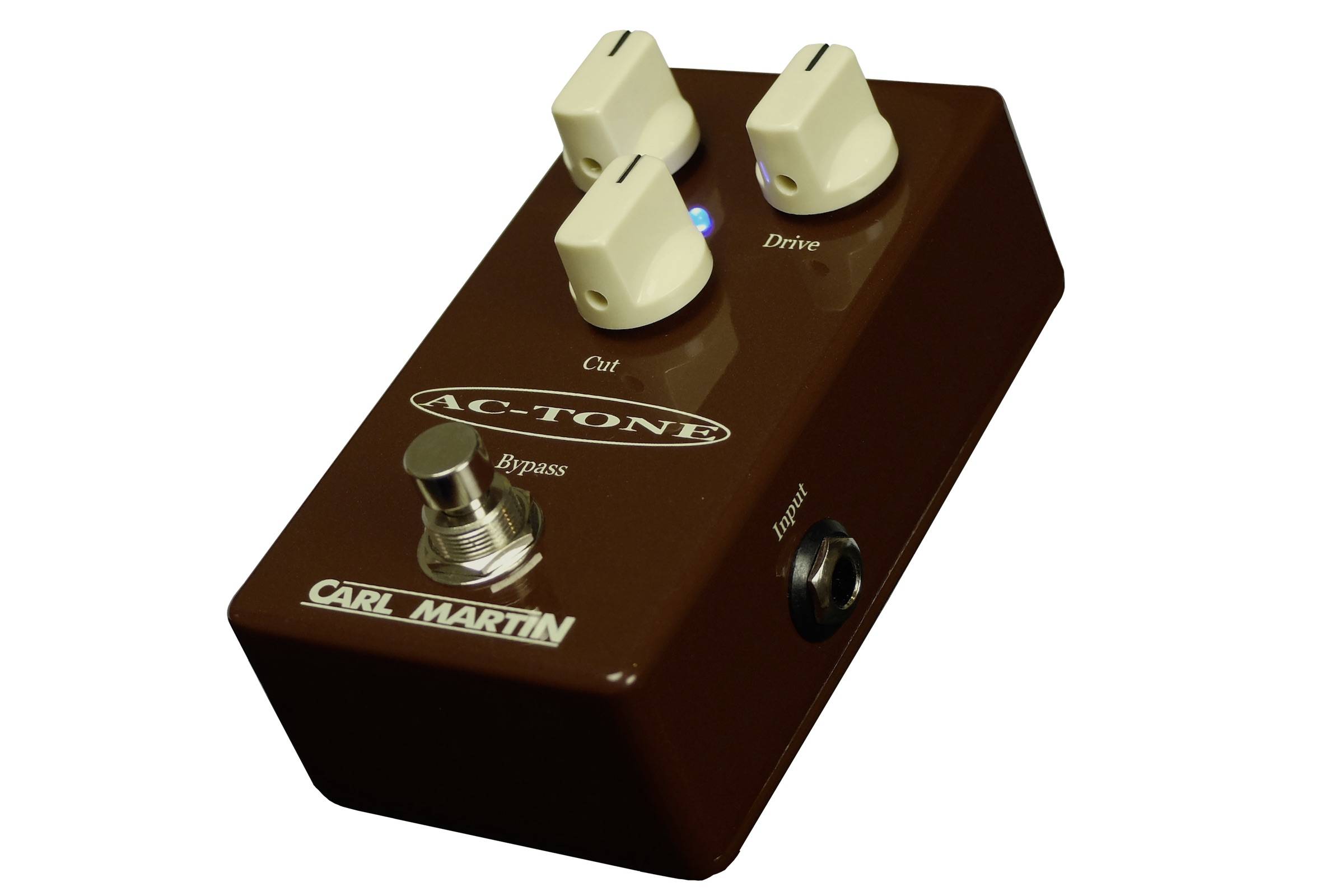

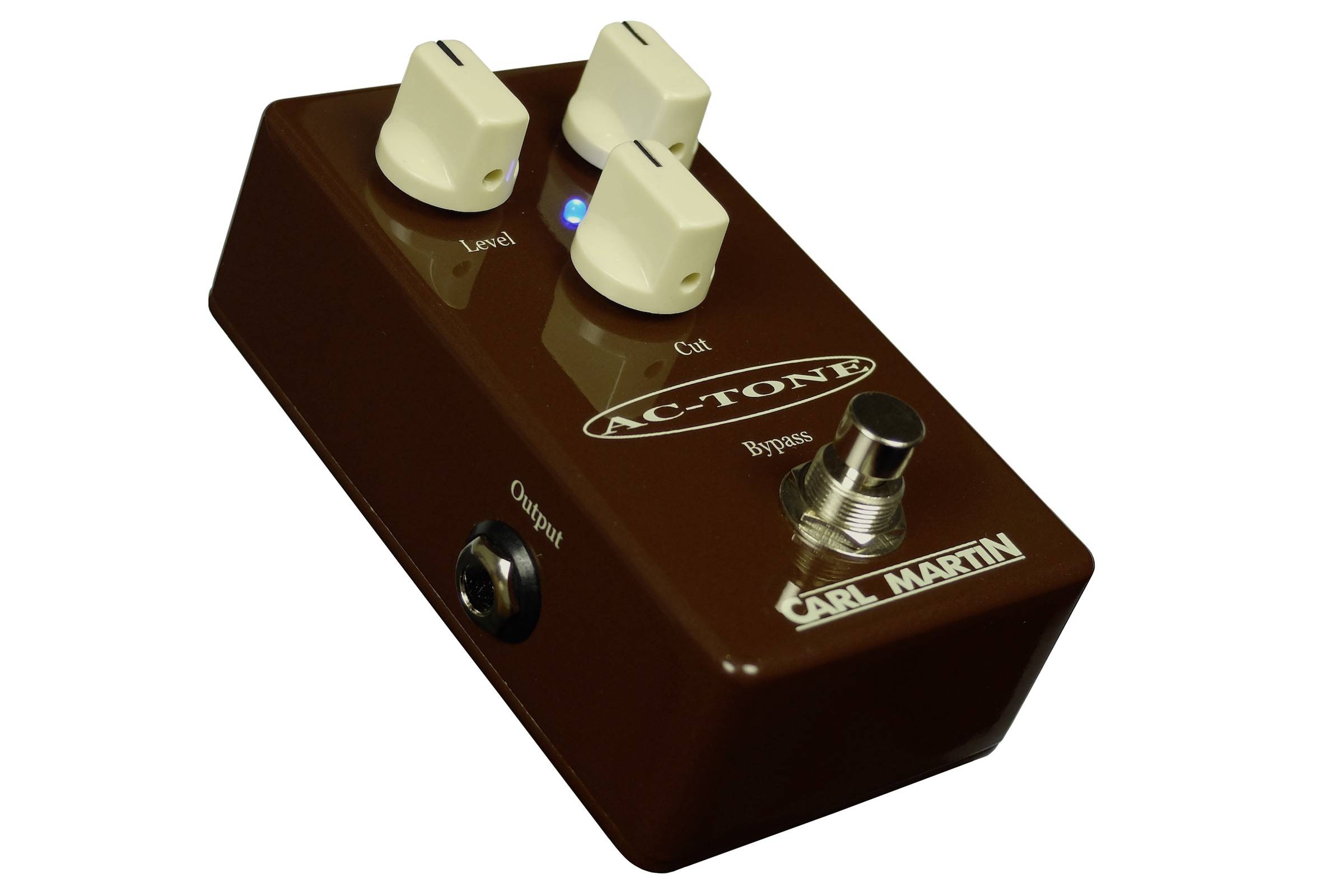

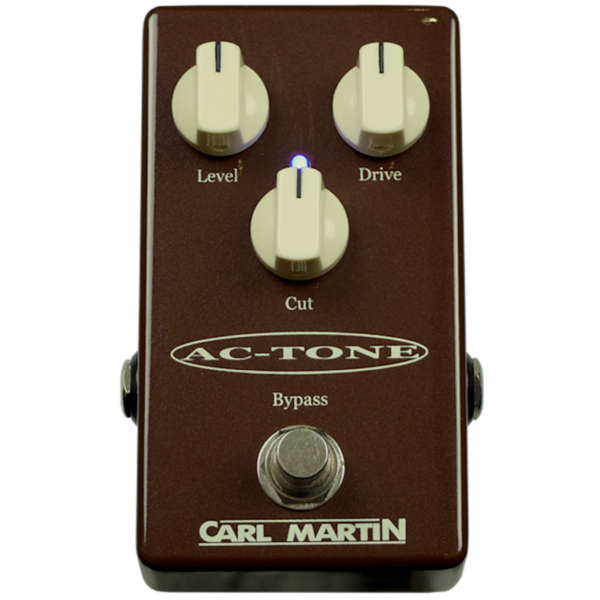

The pedalboard friendly AC Tone.Â
The Single Channel AC-Tone is a smaller pedal-board friendly,
single channel version of the original Pro-Series AC-Tone. It features 3
knobs and 1 switch and has a slightly beefed up Gain section, but
shares the very same tone as its big brother!
The single AC-Tone also incorporates our new DC-DC converter circuitry,
so the pedal can be powered by a regulated 9V Power Supply but will
still operate on the same +-12V level as the original AC powered
AC-Tone.
This allows us to use the same high quality components which
provide the same tone and headroom that make the CM Pro-Series pedals
stand out from the rest!
| Manufacturer | Carl Martin |
| Series | Pro-Series |
| Made In | China |
| Year | 2010s |
| FX | Overdrive |
| Jacks mounted on | Sides |
| Bypass | Buffered Bypass |
| Battery? | No |
| Voltage | 9 |
| Polarity | Center Negative |
| Circuit | Analog |
| Tube equipped? | No |
| Weight (in kg) | 0.28 |
| Based on famous model? | Carl Martin AC Tone |
| Famous Users | Pete Thorn, Joash Gooch, Johnny Marr, Rick Graham |
| Special Features | Active Buffered Bypass |
| Width (in cm) | 7.2 |
| Height (in cm) | 5.7 |
| Depth (in cm) | 11.2 |
| GTIN 14 | 00852940000585 |
